LP721
A high-performance square guiding indicator light integrated with multiple colorful LED chips and various signal control methods.
consultingA high-performance square guiding indicator light integrated with multiple colorful LED chips and various signal control methods. Can achieve multi-color and multi-style indication control through CAN bus signal, high-side switch signal, or analog signal. Wide voltage design with overvoltage, short circuit, and reverse connection protection. Suitable for use on construction, sanitation, road, agricultural, and other mechanical equipment.
|
Electrical parameters |
Operating Voltage |
9~32VDC |
|
Control Signal |
Switching signal (max. 4 channels), CAN2.0B (optional) |
|
|
Power |
≤18W |
|
|
Display resolution |
16x16 |
|
|
Display colour |
Full colour |
|
|
Spacing |
11x11（mm）/14.2x14.2（mm） |
|
|
Structural parameters |
Outlet mode |
Cable (Female:DT04-4P) or Aviation Plug (Matchable) |
|

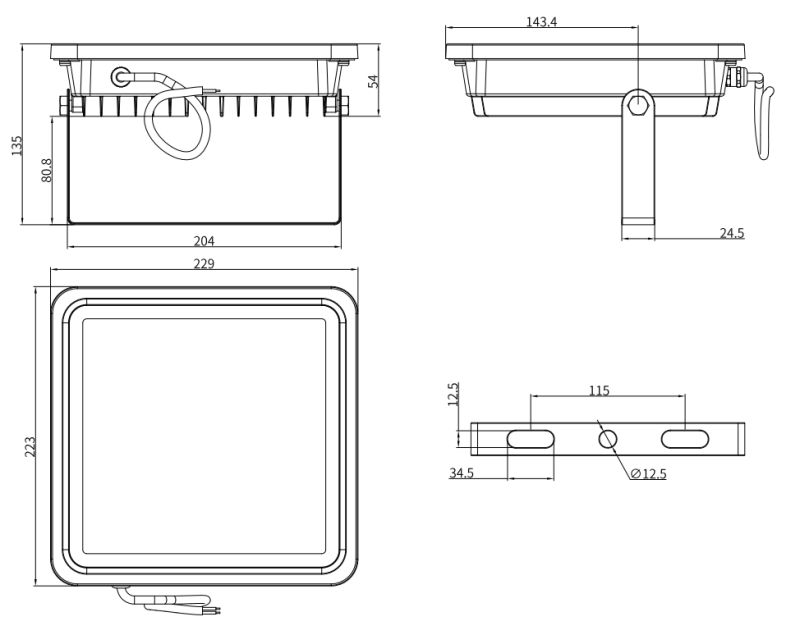

Overall Dimension |
223x229x135（mm） |
|
|
Shell material |
Aluminium alloy + PC |
|
|
Mounting method |
Bolt Mount/Bracket Mount |
|
|
Environmental parameters |
Operating Temperature |
-40℃~85℃ |
|
Storage temperature |
-40℃~85℃ |
|
|
Protection Grade |
IP65 |
|
|
Anti-vibration Grade |
GB/T4798.5 5M3 grade |
