AI domain controller

ZN611

An AI domain controller designed specifically for intelligent control of construction machinery and mobile equipment.

consulting

Product overview

An AI domain controller designed specifically for intelligent control of construction machinery and mobile equipment. Equipped with a powerful computational processing platform that supports edge computing, more suitable for AI computing, complex algorithms, vehicle control, and system management with human-machine interaction. Adopts the AUTOSAR architecture and supports Android + Linux dual systems, secure OTA management, ADAS, DMS, DVR, 360-degree panoramic view, etc. Designed to meet vehicle standards, supporting SAE J1939, UDS, DoIP, OTA updates, master-slave GPU communication, Ethernet firewall, and WiFi firewall for information security. Supports long-distance split-screen mode. Suitable for various harsh working environments.

Electrical parameters	Operating Voltage	9~32VDC
Hardware parameters	Operating Memory	Maximum 32G
	Hard Drive	Support on-board SSD Maximum 4T Chip
	Processor	8ARM cores + 2GPU; MCU 3 cores
	Input	10ch switch, 4ch analogue input, 1ch frequency acquisition
	Output	2ch speaker driver
	Audio and video inputs	8ch AHD audio/video monitoring, 1ch pickup
	Display	2ch display driver
	CAN Communication	8ch, compatible with CANFD
	LIN	1ch LIN
	Ethernet	4ch 4-wire Ethernet, 2ch 2-wire car Ethernet
	Serial port	3ch RS232，2ch RS485

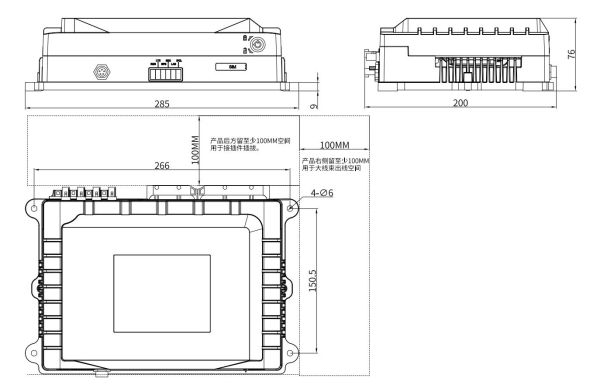

Structural Parameter	External Dimensions	285x200x76（mm）
	Housing Material	Aluminium alloy + engineering plastic
	Mounting Method	4xM5 screw mounting
Environmental Parameter	Operating Temperature	-40℃~85℃
	Storage temperature	-40℃~85℃
	Anti-vibration Grade	GB/T 4798.5 5M3 grade
