LP919
A high-performance low-profile round warning light with selectable warning colors.Wide voltage design with overvoltage,short circuit,and reverse connection protection.
consultingA high-performance low-profile round warning light with selectable warning colors.Wide voltage design with overvoltage,short circuit,and reverse connection protection.Multiple mode options,including constant light,flashing,and chasing.Suitable for warning on construction,sanitation,agricultural,and other mechanical equipment.
|
Operating parameters |
Working Voltage |
9~32VDC |
|
Nominal power |
≤7W |
|
|
Light form |
Flashing/Constant light/Chasing |
|
|
Flashing frequency |
60~80 times/min |
|
|
Colour |
Red, yellow, green optional |
|
|
Structural parameters |

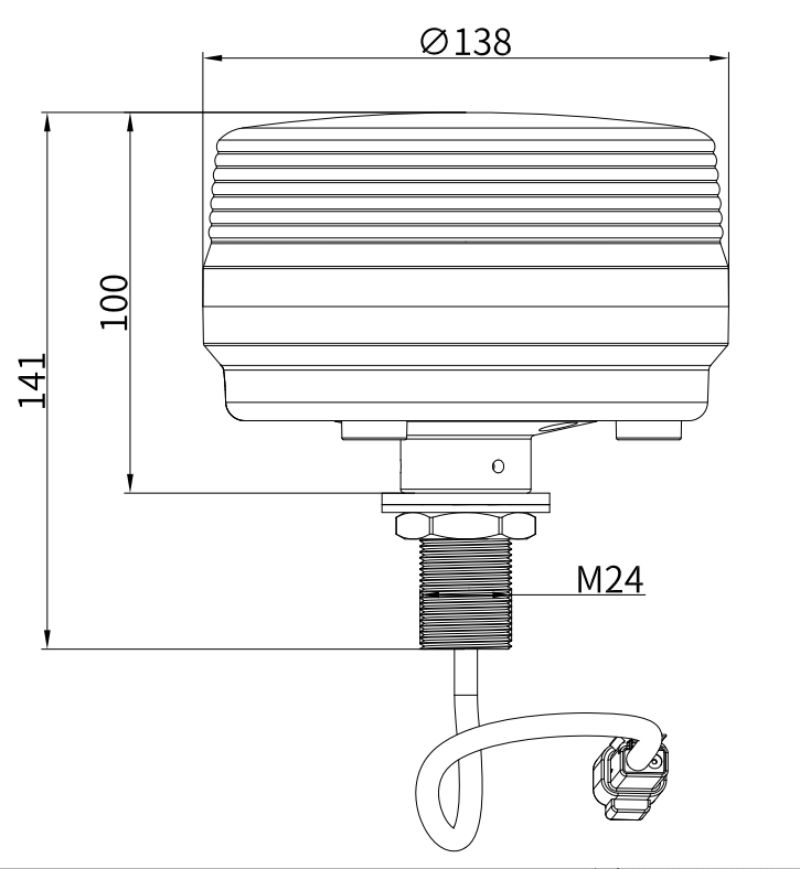

Overall Dimension |
Φ138x141（mm） |
|
Shell material |
Engineering Plastic |
|
|
Mounting method |
Bolt mounting, M24, or bracket mounting |
|
|
Environmental parameters |
Operating Temperature |
-40℃~85℃ |
|
Storage temperature |
-40℃~85℃ |
|
|
Protection Grade |
IP67 |
|
|
Salt Spray Test |
Neutral salt spray 126h |
|
|
Anti-vibration Grade |
GB/T 4798.5 5M3 grade |
