Remote Controller

ZN302

A wireless remote controller that can be used for signal transmission, action control, etc. Features economy, practicality, and compactness.

consulting

Product overview

A wireless remote controller that can be used for signal transmission, action control, etc. Features economy, practicality, and compactness. Key icons can be customized according to customer requirements, with each key configurable with up to three indicator lights. The receiver has a high protection level and can meet the requirements of various harsh environments. Widely used in engineering, agricultural, and sanitation machinery equipment.

Emitter

Electrical parameters	Operating Voltage	DC3.5~4.5V
Hardware parameters	Number of keys	5pcs
	Indicator light	Each key≤3个
	RF	433MHz
	Standard Operating Distance	50m

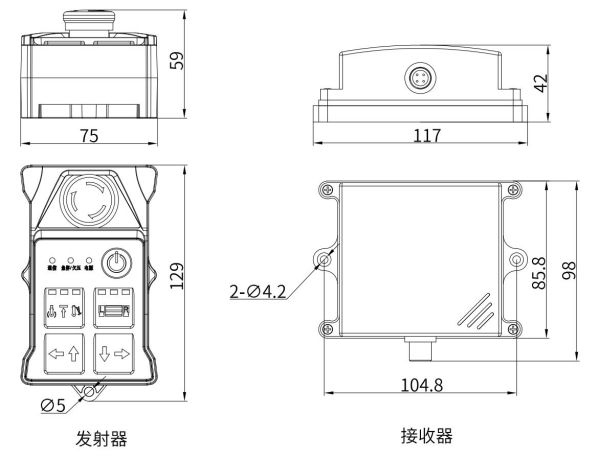

Structural parameters	Overall dimension	129x75x59（mm）
Structural parameters	Housing material	Silicone + Engineering Plastic
Environmental parameters	Operating temperature	-20℃~70℃
	Storage temperature	-40℃~85℃
	Protection grade	IP65

Receiver

Electrical parameters	Operating Voltage	9~32VDC
Hardware parameters	RF	433MHz
	CAN communication	1ch
	Power consumption	＜0.5W
Structural parameters	Overall dimension	117x98x42（mm）
	Housing material	Engineering Plastic
	Mounting method	Panel Mount
Environmental parameters	Operating temperature	-40℃~85℃
	Storage temperature	-40℃~85℃
	Protection grade	IP65
	Anti-vibration grade	GB/T 4798.5 5M3 grade
