Display Controller

ZN298

A display screen for milling machines, allowing adjustment of working parameters and displaying operation status and other relevant information.

consulting

Product overview

A display screen for milling machines,allowing adjustment of working parameters and displaying operation status and other relevant information.Features real-time monitoring of working data,multi-group keys for parameter adjustment,abnormal data alarm prompts,and timely recording of working data.Helps operators better control and manage the machine,improving work efficiency and quality.The display screen adopts an anti-vibration design,suitable for various harsh working environments.

Electrical parameters	Working Voltage	9~32VDC
Hardware parameters	Display size	7.0inch
	Resolution	1024x600
	Brightness	600cd/m²
	Keypad	37 freely programmable keys (with backlight)
	Status Indication	2 orange indicator lights (some keys with controllable status lights
Interface parameter	CAN communication	1ch
Interface parameter	Input Interface	2ch high level (available for address lines)
Electrical parameters	Programming environment	Configuration software

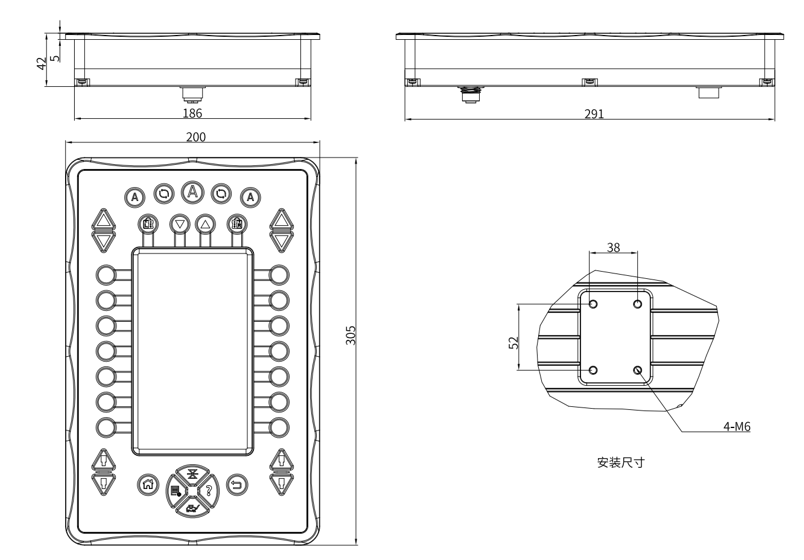

Structural parameters	Overall Dimension	305x200x40（mm）
	Housing material	Aluminium alloy
	Mounting method	Bracket Mount/Embedded Mount
Environmental parameters	Operating Temperature	-30℃~70℃
	Storage Temperature	-30℃~85℃
	Protection Grade	IP65
	Anti-vibration Grade	GB/T 4798.5 5M3 grade
