ZN11-S02
An integrated dual-frequency RFID reader/writer based on a domestic micro-controller architecture, supporting multi-channel expansion.
consultingAn integrated dual-frequency RFID reader/writer based on a domestic microcontroller architecture,supporting multi-channel expansion.Operating frequencies are 125KHz and 2.4GHz.Supports multi-terminal expansion and CAN2.0B communication.Supports anti-collision algorithms and received signal strength indication(RSSI).Sturdy aluminum alloy housing.Features fast identification speed,high accuracy,and long identification distance.Mainly used in fields such as rail transit,equipment,and construction machinery.
|
Electrical parameters |
Operating Voltage |
9~32VDC |
|
Hardware parameters |
Wireless Protocol |
2.4G Private Protocol |
|
Operating Frequency |
125KHz，2.4GHz |
|
|
Reading and Writing Distance |
0~5m (related to installation environment) |
|
|
Multi-label Identification |
>10 frames/sec |
|
|
Label RSSI Test |
Support |
|
|
Interface parameter |
CAN communication |
1ch |
|
Structural parameters |

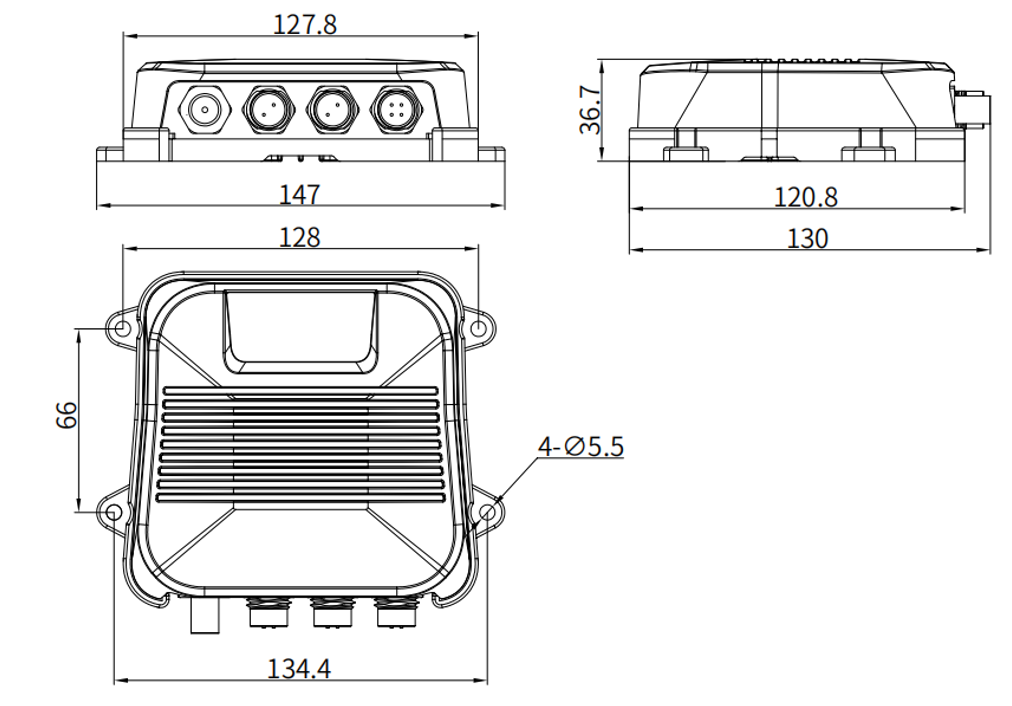

Overall Dimension |
147x130x36.7（mm） |
|
Shell material |
Aluminium alloy |
|
|
Mounting method |
Panel Mount |
|
|
Environmental parameters |
Operating Temperature |
-40℃~85℃ |
|
Storage Temperature |
-40℃~85℃ |
|
|
Protection Grade |
IP67 |
|
|
Anti-vibration Grade |
GB/T 4798.5 5M3 grade |
