ZN11-U02
A distributed ultra-high frequency intelligent identification terminal supporting multi-channel expansion.
consultingA distributed ultra-high frequency intelligent identification terminal supporting multi-channel expansion.Operating frequency is 902MHz~928MHz,compliant with EPC Global Class 1 Gen2/ISO 18000-6C standards.Supports expansion of multiple RF output channels with a maximum output power of 30dBm.Supports CAN bus communication.Features fast batch identification speed,high accuracy,and long identification distance.Widely used in sanitation machinery,agricultural machinery,construction machinery,equipment,and other fields.
|
Electrical parameters |
Operating Voltage |
9~32VDC |
|
Hardware parameters |
Supported protocols |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
|
Working Frequency |
902MHz~ 928MHz |
|
|
Read/Write Distance |
≤3m (installation environment and label related) |
|
|
Multi-label Identification |
50 frames/sec |
|
|
Number of channels |
2ch |
|
|
Interface parameter |
CAN communication |
1ch |
|
Structural parameters |

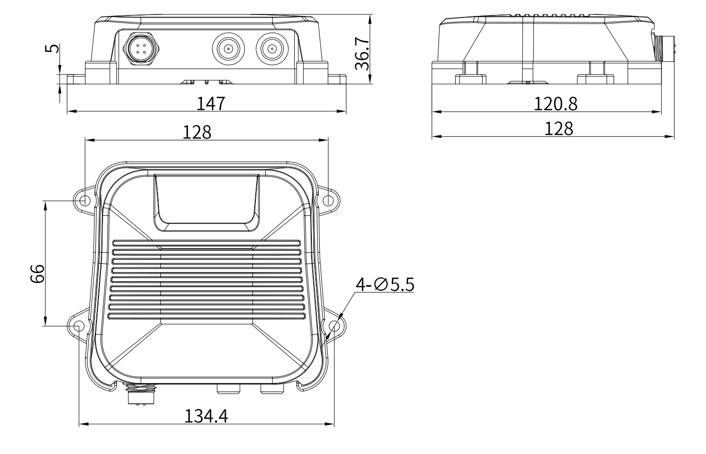

Overall Dimension |
147x128x36.7（mm） |
|
Shell material |
Aluminium alloy |
|
|
Mounting method |
Panel Mount |
|
|
Environmental parameters |
Operating Temperature |
-40℃~85℃ |
|
Storage Temperature |
-40℃~85℃ |
|
|
Protection Grade |
IP67 |
|
|
Anti-vibration Grade |
GB/T 4798.5 5M3 grade |
