Special LED Work Light

LP723

A high-protection-level leveling ruler light integrated with multiple high-brightness LED chips. Wide voltage design with overvoltage, short circuit, and reverse connection protection.

consulting

Product overview

A high-protection-level leveling ruler light integrated with multiple high-brightness LED chips. Wide voltage design with overvoltage, short circuit, and reverse connection protection. Fully transparent potting seal for high protection level. Suitable for use on construction, sanitation, road, agricultural, and other mechanical equipment.

Electrical parameters	Working Voltage	9~32VDC, Rated voltage: 24VDC
	Power	≤9W
	Display Size	LxW：480x43（mm）
	Number of beads	38
	Spacing	20mm
Structural parameters	Outlet mode	Cable (Female:DT04-2P)

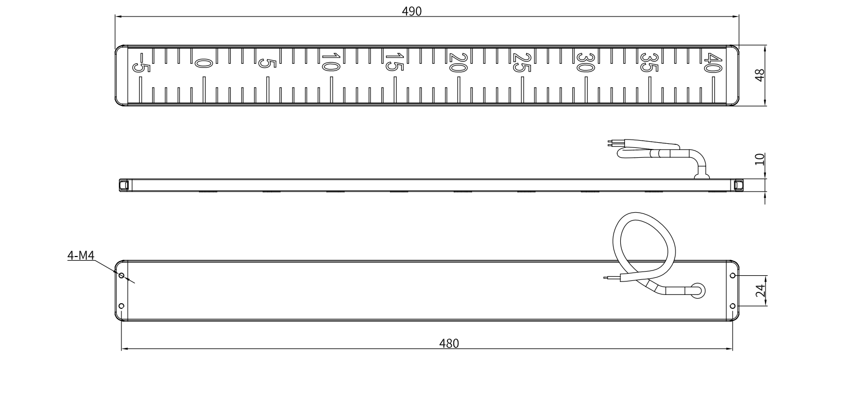

	Overall Dimension	490x48x10（mm）
	Shell material	Aluminium alloy + PC
	Mounting method	Screw Mount/Bracket Mount
Environmental parameters	Operating Temperature	-40℃~85℃
	Storage temperature	-40℃~85℃
	Protection Grade	IP67
	Anti-vibration Grade	GB/T4798.5 5M3 grade
