LP205X
A high-performance square work light with 9 high-power LED light sources and an integrated lens for uniform light distribution.
consulting|
Operating parameters |
Working Voltage |
9~32VDC |
|
Nominal power |
18W |
|
|
Rated luminous flux |
1950lm |
|
|
Colour temperature |
5500~6500K（Customized） |
|
|
Lamp life |
50000h |
|
|
Number of lamp beads |
9PCS |
|
|
Projection mode |
Floodlight |
|
|
Structural parameters |

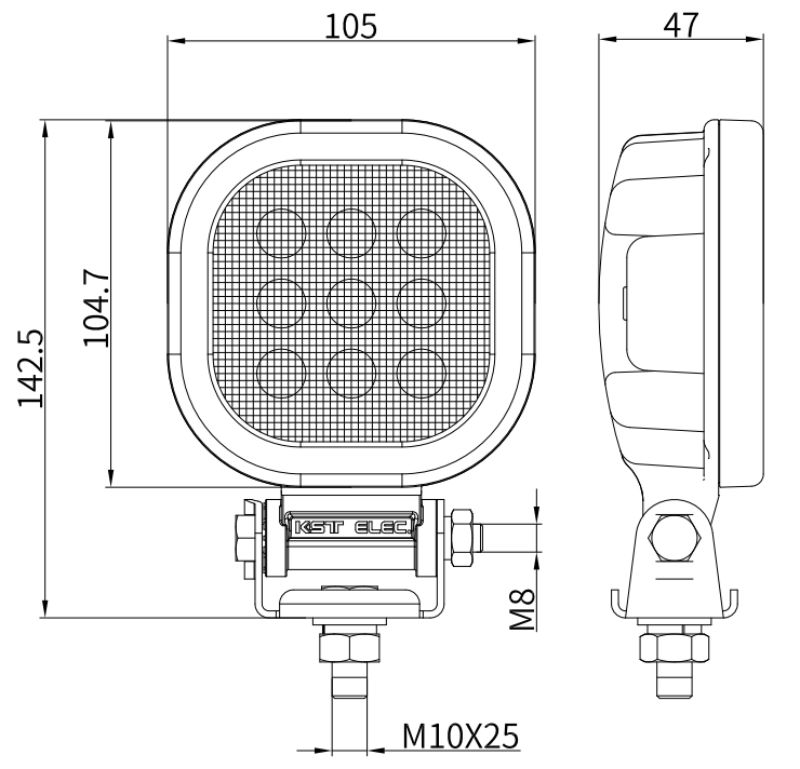

Overall Dimension |
142.5x105x47（mm） |
|
Lampshade Material |
PC Patterned Surface |
|
|
Shell material |
Aluminium Alloy |
|
|
Mounting method |
Bolt Mount, M10x25 |
|
|
Environmental parameters |
Operating Temperature |
-40℃~85℃ |
|
Storage temperature |
-40℃~85℃ |
|
|
Protection Grade |
IP67 |
|
|
Salt Spray Test |
Neutral salt spray 126h |
|
|
Anti-vibration Grade |
GB/T 4798.5 5M3 grade |
