LP204
A high-performance square high-power work light with 9 high-power LED light sources and a professional light distribution design for uniform light spots.
consulting|
Operating parameters |
Working Voltage |
9~32VDC |
|
Nominal power |
27W |
|
|
Rated luminous flux |
2025lm |
|
|
Colour temperature |
5500~6500K（Customized） |
|
|
Lamp life |
50000h |
|
|
Number of lamp beads |
9PCS |
|
|

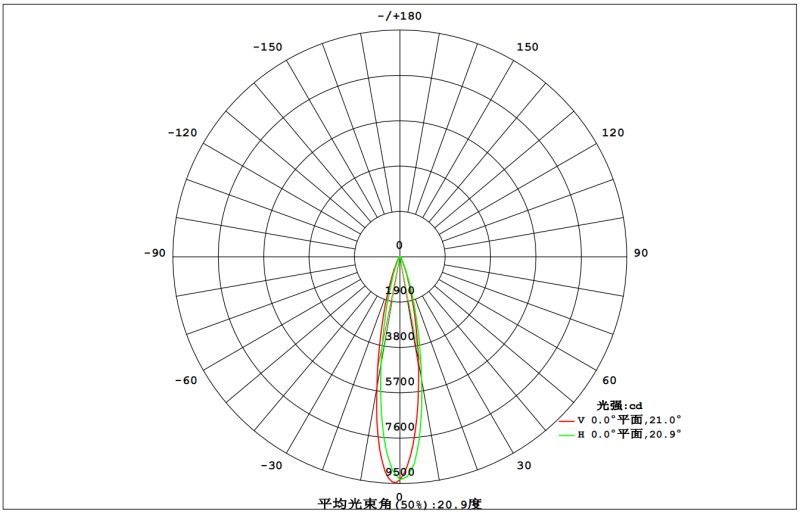

Projection mode |
Spot/Flood |
|
|
Structural parameters |

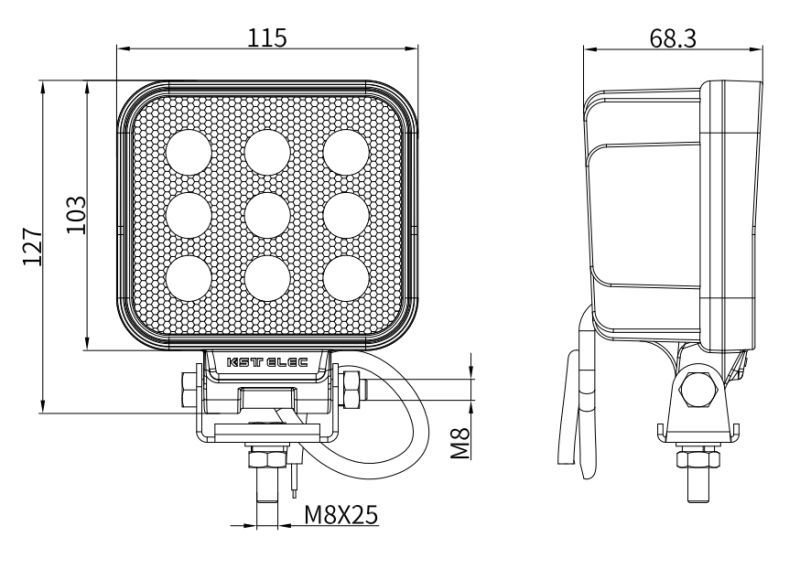

Overall Dimension |
127x115x68.3（mm） |
|
Lampshade Material |
PC Patterned Surface |
|
|
Shell material |
Aluminium Alloy |
|
|
Mounting method |
Bolt Mount, M8x25 |
|
|
Environmental parameters |
Operating Temperature |
-40℃~85℃ |
|
Storage temperature |
-40℃~85℃ |
|
|
Protection Grade |
IP67 |
|
|
Salt Spray Test |
Neutral salt spray 126h |
|
|
Anti-vibration Grade |
GB/T 4798.5 5M3 grade |
