Intelligent Power Management Module

ZN222

consulting

Product overview

A T-shaped power management module. Solves the problems of messy wiring and crowded devices in the electric control cabinet and driver's cab of mobile equipment through integrated modularization of electric control devices, improving installation efficiency and making the interior neat and orderly. Adopts a separate design of fuses and relays to achieve embedded installation. Can be customized and developed according to machinery equipment in engineering, agriculture, sanitation, etc.

Electrical parameters	Operating Voltage	9~32VDC
Electrical parameters	Current-carrying range	≤60A

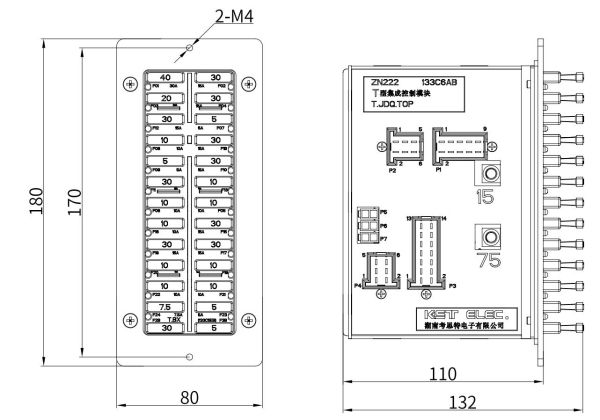

Structural parameters	Overall Dimension	180×132×80（mm）
	Shell material	Flame retardant engineering plastic
	Mounting method	Embedding Mounting
Hardware parameters	Number of terminals	Customizable
Hardware parameters	Wire Harness Connector	Customizable
Environmental parameters	Operating Temperature	-40℃~85℃
	Storage Temperature	-40℃~85℃
	Anti-vibration Grade	GB/T 4798.5 5M3 grade
