Intelligent Power Management Module

ZN2A14

A protective intelligent power management module. Integrates components such as relays, fuses, and flashers with a high degree of integration.

consulting

Product overview

A protective intelligent power management module.Integrates components such as relays,fuses,and flashers with a high degree of integration.Features short-circuit protection,reverse connection protection,status indication,etc.Can be customized and developed according to machinery equipment in engineering,firefighting,agriculture,sanitation,etc.

Electrical parameters	Operating Voltage	9~16VDC
Electrical parameters	Current-carrying range	≤60A+60A

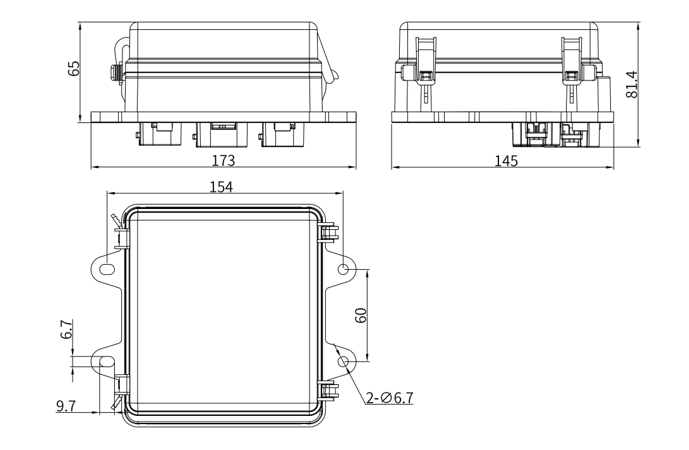

Structural parameters	Overall Dimension	173×145×81.4（mm）
	Shell material	Flame retardant engineering plastic
	Mounting method	Bracket Mounting
Hardware parameters	Number of terminals	Up to 44PIN + 2ch M6 stud inputs
Hardware parameters	Wire Harness Connector	THB：1518101、1511901、1511902
Environmental parameters	Operating Temperature	-40℃ ~ 85℃
	Storage Temperature	-40℃ ~ 90℃
	Protection Grade	IP65
	Anti-vibration Grade	GB/T 4798.5 5M3 grade
