Intelligent Power Management Module

ZN269

A bus-type intelligent power management module. Can monitor the working status of key components and power distribution current.

consulting

Product overview

A bus-type intelligent power management module. Can monitor the working status of key components and power distribution current. Compared with traditional power management modules, it is easier to control the working status of the equipment and facilitate fault troubleshooting. Features high integration, short-circuit protection, open-circuit monitoring, etc. Can be customized and developed according to machinery equipment in engineering, firefighting, agriculture, sanitation, etc.

Electrical parameters	Working Voltage	9~32VDC
Electrical parameters	Carring Current Range	≤50A
Hardware parameters	Number of Current Test Chanel	21ch
	Status Monitoring Chanel	42ch
	Communication Method	CAN2.0B
	Number of Terminals	Up to 120PIN + 6ch M6 Stud Inputs
	Wire Harness Connector	TE：929504-3、929504-4、929504-5、929504-6、929504-7
Structural parameters	Number of relays	16PCS
	RPM Acquisition Module	2PCS
	Number of circuit breakers	18ch

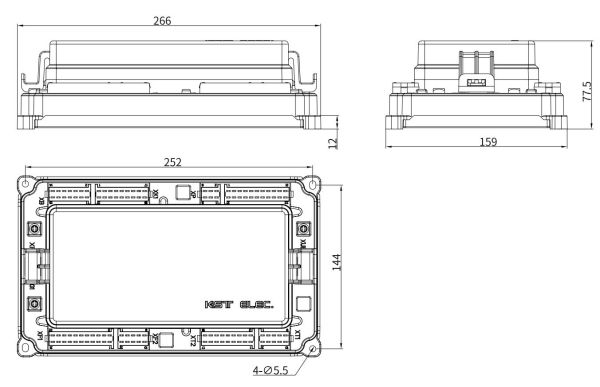

Structural parameters	Overall Dimension	266x159x77.5（mm）
	Housing Material	Flame retardant engineering plastics
	Cover Material	Transparent PC
	Mounting method	Panel Mount
Environmental parameters	Operating Temperature	-40℃~85℃
	Storage Temperature	-40℃~85℃
	Anti-vibration Grade	GB/T 4798.5 5M3 grade
